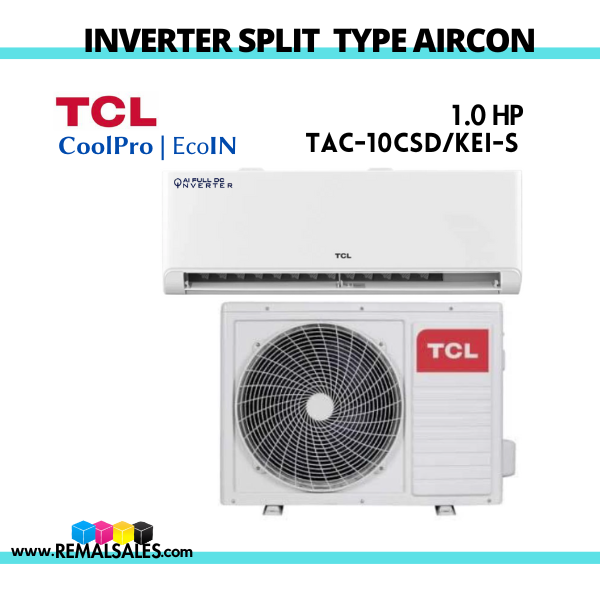

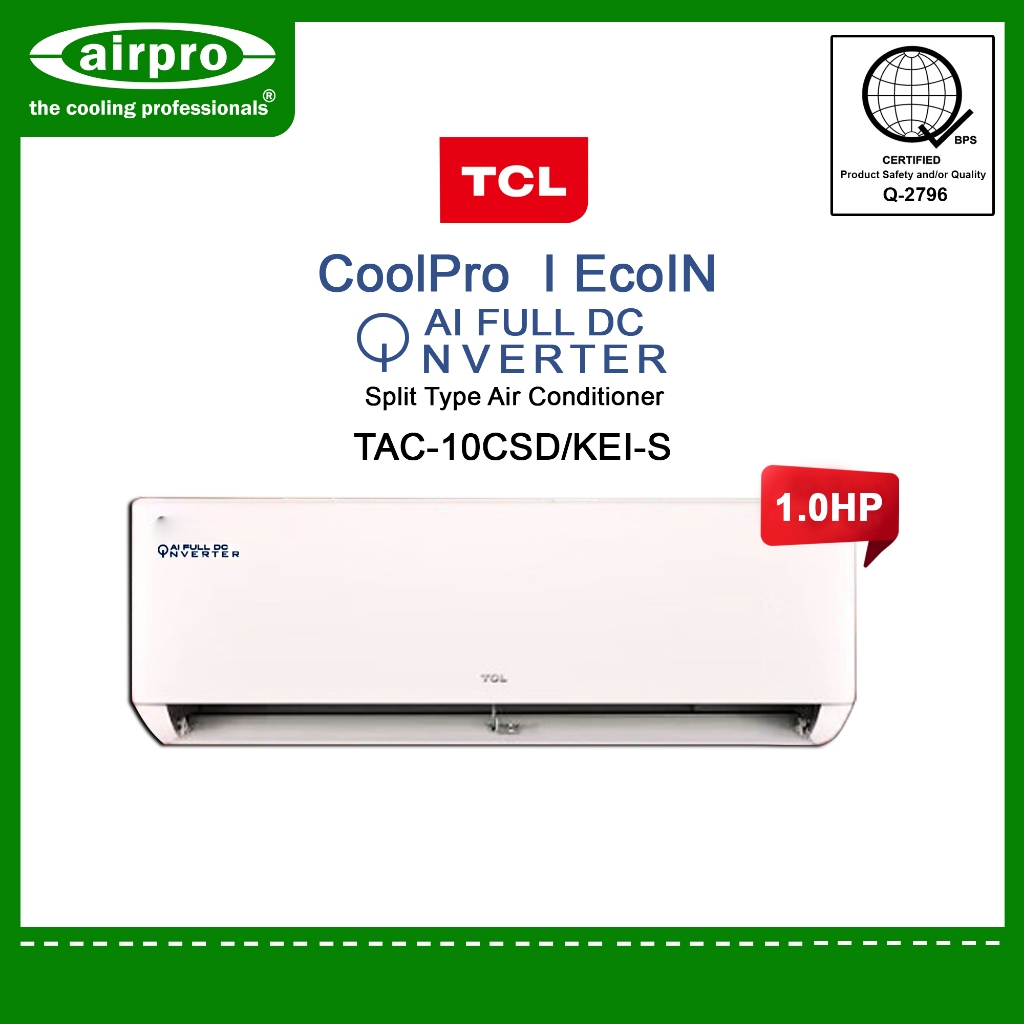

Experience energy-efficient cooling with a whisper-quiet 22dB operation, perfect for bedrooms and small spaces. Features AI Full DC Inverter technology that adjusts cooling power intelligently while saving up to 60% energy compared to conventional units. The 5-star CSPF 3.5 rating ensures maximum efficiency with 980kWh/year consumption. Enjoy customizable comfort with 4 operation modes (Cool/Dry/Fan/Auto) and Turbo Mode for instant cooling. Built with self-cleaning function and antibacterial filters to maintain fresh, healthy air. Smart Wi-Fi control lets you adjust temperature remotely via smartphone. Compact wall-mounted design (79.8x29.5x20.5cm) fits seamlessly in any room while delivering powerful 500m³/h airflow with vertical/horizontal swing.
Specifications
Price
Shopee
₱16,220
4 products
Lazada
₱16,995
1 product
Specifications
Basic information
Brand
TCL
Application
Residential
Type
Split-type Air Conditioner
Features
Air flow control
Horizontal swing
Yes
Vertical swing
Yes
Filtration system
Dust filter, Antibacterial filter
Operation modes
Cool, Dry, Fan, Auto
Protection features
Auto-restart, Anti-freeze protection, Overload protection
Smart features
Wi-Fi control, Timer function
Special functions
Turbo Mode, Sleep Mode, Self-cleaning
Technical parameters
Airflow
Maximum air flow rate
500
Noise level
High
42
Unit
dB
Low
22
Air flow rate unit
m³/h
Electrical
Power supply
220-240V, 50Hz
Connection wire
3-core, 1.5mm²
Operating range
Temperature
Unit
°C
Minimum
16
Maximum
32
Piping
Maximum height difference
10
Liquid pipe diameter
6.35
Gas pipe diameter
9.52
Pipe diameter unit
mm
Additional refrigerant charge
0.02
Maximum pipe length
15
Length unit
m
Refrigerant
Charge
0.55
Charge unit
kg
Type
R32
Installation
Installation area unit
m²
Minimum installation area
0.5
Mounting type
Wall-mounted
Warranty
Coverage type
Parts and labor
Duration
1
Duration unit
year
Certifications
Environmental certification
RoHS
Safety certification
CE
Performance specifications
Cooling
Unit
kW
Capacity range
Minimum
0.8
Maximum
3.2
Power consumption
0.81
Rated capacity
2.8
Coverage area
Unit
ping
Minimum
8
Maximum
12
Dehumidification
Unit
l/h
Capacity
1.8
Energy efficiency
Annual power consumption
980
Energy efficiency rating
5
Power consumption unit
kWh/year
Cooling seasonal performance factor
3.5
